INSULATING JOINTS
BONDED INSULATING RAIL JOINTS
The kit for the construction of bonded insulating joints is formed by:
- n. 2 insulatin fish-joints
- n. 4 insulating tubes
- n. 1 tin of adhesive
- n. 1 insulation end post at rail form
Components description

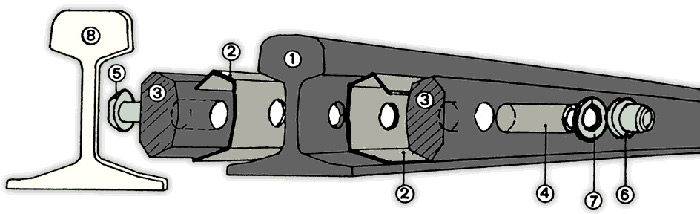

| COMPONENTS | |
|---|---|
| 1 | Cut-down rail size |
| 2 | Insulating moulded fishplates |
| 3 | Steel moulded fishplates |
| 4 | Insulating tubes |
| 5 | Steel bolts |
| 6 | Nuts |
| 7 | Weshers |
| 8 | Insulating end post |
The materials, that form the kit, are dimensionally different in relation to the kind of used rail: rail type UNI50, rail type UNI60. The insulation joint had been submitted to lab tests regarding mechanical resistance and insulation electrical tests.
This kit has been approved by Italian F.S.
The insulation joint had been submitted to lab tests regarding mechanical resistance and insulation electrical tests.
-
a) MECHANICAL TESTS
- axial traction
- dynamic flexion b) ELECTRICAL INSULATION TESTS
- electrical strength
- insulation resistance
